Product Details:

Operation Mode    Manual
Condition    New
Capacity (ton per day)    0 - 4
Certifications    ISO 9001:2000
Weight    approx - 26 kg.
Size HXBXL    58 cm. * 30 cm.
Size of Emery Stone    150 mm. (6") Dia
Grinding Avg Per Hour    8 kg. to 10 kg. Coarse - 18kg.
Structure of Body    Stainless Steel & cast Iron
Electric Motor    A.C 220V 50C/S single phase Also available in 110V 60C/S for USA in 19kg. wt.
Wheat    8 kg.

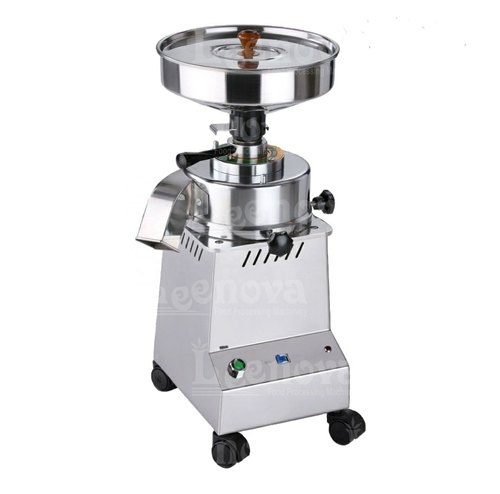

With an aim to stand tall on the expectations of our esteemed clients, we are providing Domestic Flour Mill. The offered flour mill is manufactured by our proficient professionals using the finest quality components and progressive technology under the guidance of adept professionals. Our valuable customers can avail this flour mill from us in different sizes and specifications at pocket friendly price.

Features:

High efficiency
Automatic
Easy to handle

Necessary instruction for operating Flour Mill:

For better security of motor there is an inbuilt automatic over swtich with flour mill
use this push button (Overload) Switch if
Hopper is already filled up
Some corn or ungrinded material remains between the emery stones
You have stopped flour mill during course of grinding
Moisturized and oily material should be dried or roasted before grinding
Some times emery stone accumulates a thin layer of flour due to constant thin grinding and so average grinding capacity drops a little. Grind out some rough and coarse wheat flour
That will help flour mill to return it´s original grinding average
For the best performance, please give a break to flour mill for an hour after an hour of constant grinding
While fitting the delivery cover and cleaning emery stones keep regulator at No.1
Stop flour mill a few seconds later after the disposal of the grain in the hopper
Earthing is must where flour mill is installed

Specifications:
Weight :    approx - 26 kg.
Size HXBXL :    58 cm. × 30 cm.
Size of Emery Stone :    150 mm. (6") Dia
Grinding Avg. Per Hour :    8 kg. to 10 kg. Coarse - 18kg.
Temperature:    55cC to 65C -Max. after - 1/2 Hours
Structure of Body :    Stainless Steel & cast Iron
Electric Motor :    A.C 220V 50C/S single phase Also available in 110V 60C/S for USA in 19kg. wt.
Specification :    1 H.P. 4 AMP 220/250V. 960 R.P.M.
Grinding Capacity per hour for Approx. (Kg.)
Wheat    8 kg.
Juwar    8 kg.
Millet    8 kg.
Rice    10 kg.
Chana(DRY)    10 kg.
Adad    10 kg.
Mag    10 kg.
Rawo    10 kg
